Wow folks! Sony announced the world’s first 20 Megapixel Four Thirds format Global Shutter sensor! Will it be used by the new Olympus OMD?

Share

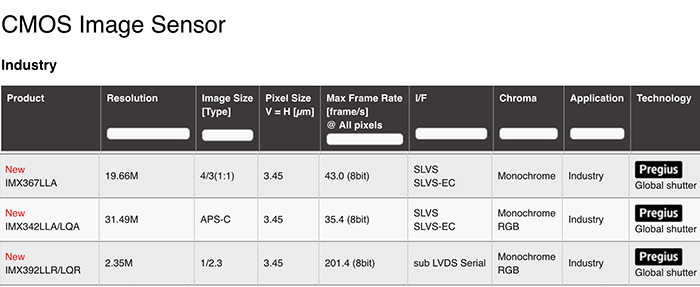

Well this is exciting! Sony announced the world’s first range of global shutter sensors. This list inlcudes a new 20 Megapixel Global Shutter sensor! Damn I can see Olympus using this on their new OMD camera! Those are some incredible specs:

Description

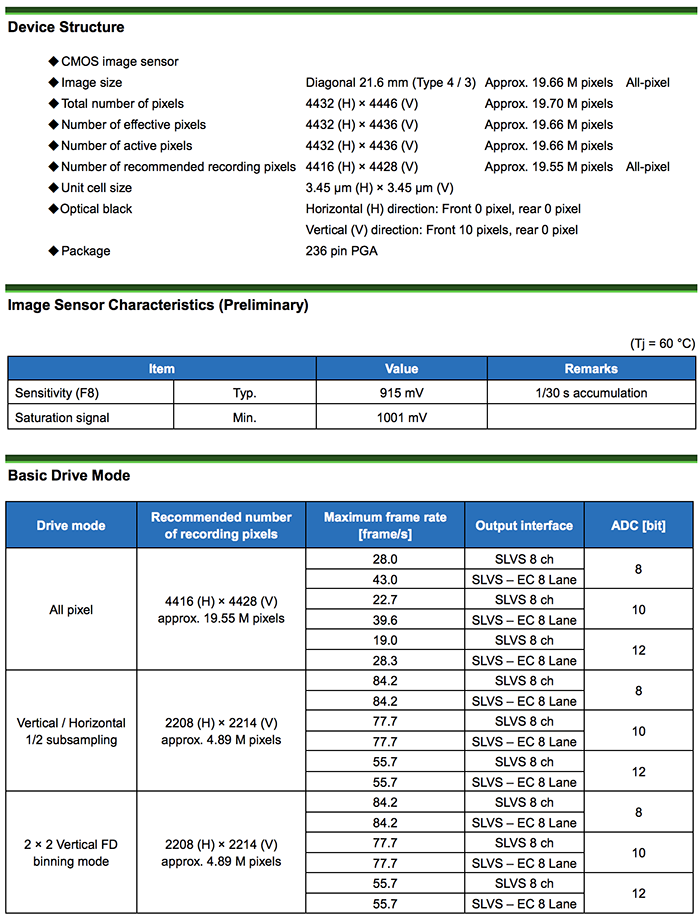

The IMX367LLA is a diagonal 21.6 mm (Type 4 / 3) CMOS active pixel type solid-state image sensor with a square
pixel array and 19.66 M effective pixels. This chip features a global shutter with variable charge-integration time. This
chip operates with analog 3.3 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption.
High sensitivity, low dark current and low PLS characteristics are achieved.
(Applications: FA cameras, ITS cameras)

Features
◆ CMOS active pixel type dots
◆ Built-in timing adjustment circuit, H/V driver and serial communication circuit
◆ Global shutter function
◆ Input frequency
37.125 MHz / 74.25 MHz / 54 MHz
◆ Number of recommended recording pixels: 4416 (H) × 4428 (V) approx. 19.55 M pixels
Readout mode
All-pixel scan mode
Vertical / Horizontal 1 / 2 Subsampling mode
2 × 2 Vertical FD binning mode
ROI mode
Vertical / Horizontal‐Normal / Inverted readout mode
◆ Readout rate
Maximum frame rate in
All-pixel scan mode: 8 bit 43.0 frame/s, 10 bit: 39.6 frame/s, 12 bit: 28.3 frame/s
◆ 8-bit / 10-bit / 12-bit A/D converter
◆ CDS / PGA function
0 dB to 24 dB: Analog Gain (0.1 dB step)
24.1 dB to 48 dB: Analog Gain: 24 dB + Digital Gain: 0.1 dB to 24 dB (0.1 dB step)
◆ I/O interface
SLVS (2 ch / 4 ch / 8 ch switching) output (594 / 297 Mbps per ch)
SLVS – EC (1 Lane / 2 Lane / 4 Lane / 8 Lane) output (2.376 / 1.188 Gbps per Lane)
◆ Recommended lens F number: 2.8 or more (Close side)
◆ Recommended exit pupil distance: –100 mm to –∞

* Pregius is a trademark of Sony Corporation. The Pregius is global shutter pixel technology for active pixel-type CMOS image sensors that use
Sony’s low-noise CCD structure, and realizes high picture quality.

Sony reserves the right to change products and specifications without prior notice.
Sony logo is a registered trademark of Sony Corporation.
